Application

USB3.0 Port

The maximum transfer rate of USB3.0 is 5Gbps.

Test standard:IEC 61000-4-2：±8KV（contact）±15KV（air）

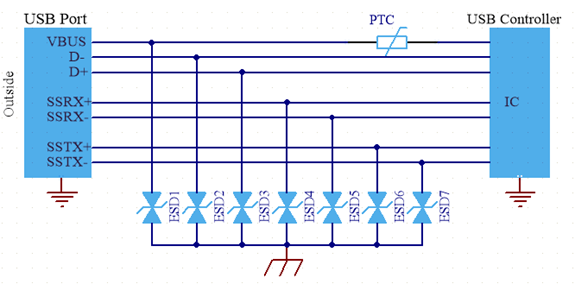

Solutions：ESD1～ESD7：UP1P882C05P01

Part Number	VRWM	IPP	VC	C	ESD Capacity	Package
UP1P882C05P01	5V	3A	20V@3A	0.4pF	±20KV	SOD-882

UP1P882CXXP01 Series
Power:0W to 100W; Package: SOD-882; Breakdown voltage: 3.3V to 24V; ns-level response speed; Lower clamping voltage;
