The data signals used in High Definition Multimedia Interface ports vary between approximately 2.5V and 3.5V, and have a data rate of 1.6Gbps (1.3) or 3.4Gbps (1.4). The signal lines to be protected from ESD include D2+, D2-, D1+, D1-, D0+, D0-, CLK+ and CLK-.

Test standard:IEC 61000-4-2：±8KV（contact）±15KV（air）

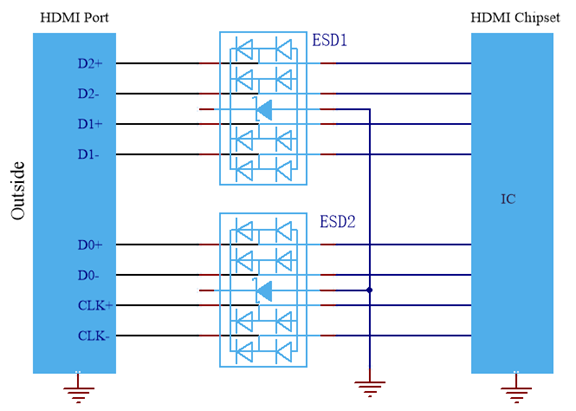

Solutions: ESD1～ESD2：UP1.5P0524A05P04
