10/100/1000 Ethernet Solution for ESD and Lightning Strikes


Test standard:

IEC 61000-4-2：±8KV（contact）±15KV（air）

ITU-TK.21：10/700uS 6KV/40Ω ±5 times，Interval time: 60S

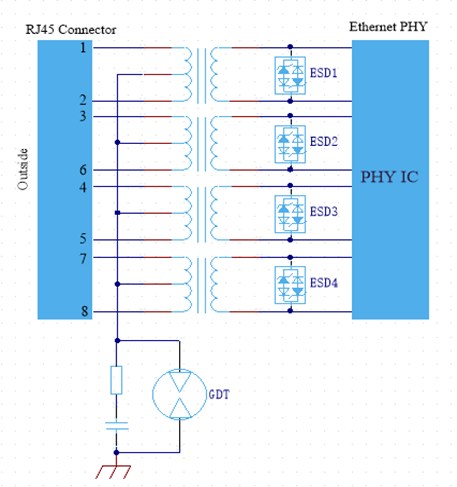

Solutions：

GDT：2RL090M-5SS （DC Spark-over Voltage 90V, Maximum Impulse Spark-over Voltage 700V, capacitance 1pF,Nominal Impulse Discharge Current 5KA, package SMD5042）

ESD1～ESD4：UP3.5P323C05P01

Part Number	VRWM	IPP	VC	C	ESD Capacity	Package
UP3.5P323C05P01	5V	17A	18.3V@17A	1pF	±30KV	SOD-323

Product recommendation

2RLXXXM-5SS Series
Size: 5.0mm*4.2mm;DC Spark-over Voltage:75V to 800V;Surge capacity is up to 5KA;Lower capacitance;Faster response time;
UP3.5P323CXXP01 Series
Power:350W; Package: SOD-323; Breakdown voltage: 3.3V to 24V; ns-level response speed; Lower clamping voltage;
