Application

Battery Pack


The power bus of the battery pack needs to avoid being affected by the overcurrentand over-voltage phenomenon.

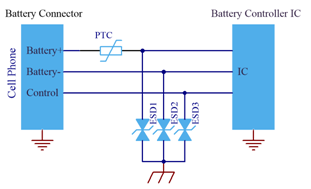

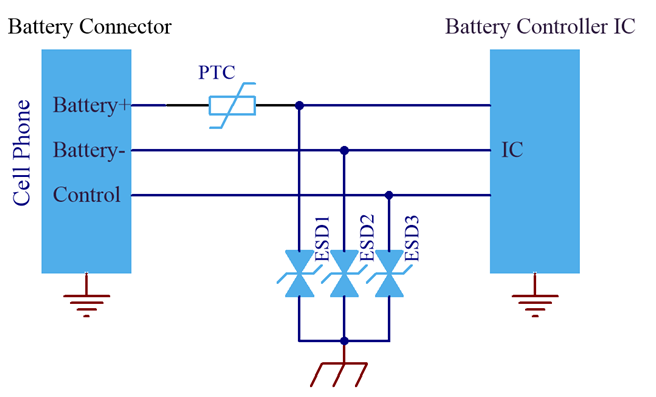

Solutions：ESD1～ESD3：SP1PN06C05P01

Part Number	VRWM	IPP	VC	C	ESD Capacity	Package
SP1PN06C05P01	5V	15A	24V@15A	30pF	±30KV	DFN0603-2L

SP1PN06CXXP01 Series
Power:100W; Package: DFN0603-2L; Breakdown voltage: 5V、12V、15V、24V、36V; ns-level response speed; Lower clamping voltage;
