The Protecion Circuit of RF


Test standard:

1、IEC61000-4-2：±30KV(contact)，±30KV(air)

2、IEC61000-4-5: 1.2/50us&8/20us Differential mode 4KV/2Ω Common mode 8KV/12Ω ±5 times Interval:60s

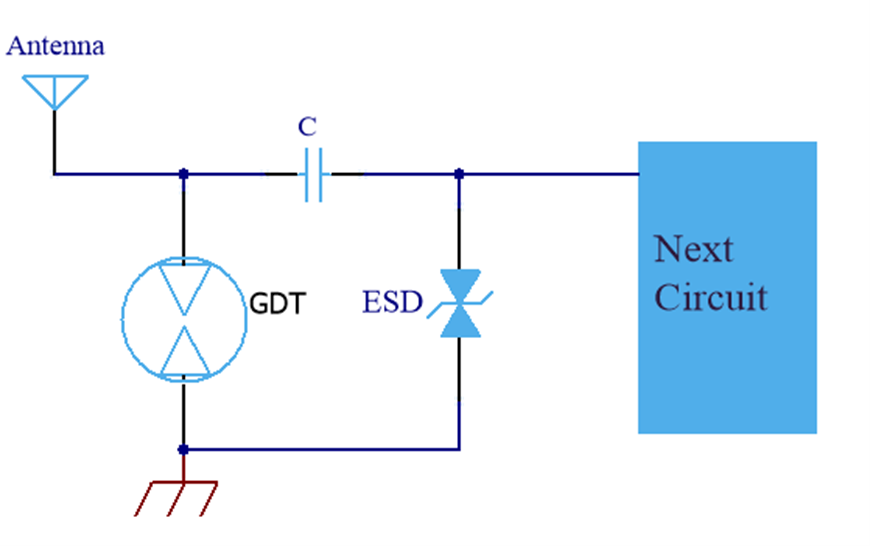

Solution: GDT: 2RL090M-5SS (DC Spark-over Voltage 90V, Maximum Impulse Spark-over Voltage 700V, capacitance 1pF,Nominal Impulse Discharge Current 5KA, package SMD5042)

ESD：UP1P882C05P01

Part Number

VRWM

IPP

VC

C

ESD Capacity

Package

UP1P882C05P01

5V

3A

20V@3A

0.4pF

±20KV

SOD-882


Product recommendation

  • 2RLXXXM-5SS Series
    Size: 5.0mm*4.2mm;DC Spark-over Voltage:75V to 800V;Surge capacity is up to 5KA;Lower capacitance;Faster response time;
  • UP1P882CXXP01 Series
    Power:0W to 100W; Package: SOD-882; Breakdown voltage: 3.3V to 24V; ns-level response speed; Lower clamping voltage; ​
