Automotive electronic power supply system mainly includes 12V system, 24V system and other voltage systems. It is necessary to consider that protect automotive all components under the power supply change suddenly.
Test standard: ISO 16750-2
12V system Pulse 5a 87V 0.5Ω 400ms 10 times interval time：60s
24V system Pulse 5a 174V 2/4Ω 350ms 10 times interval time：60s

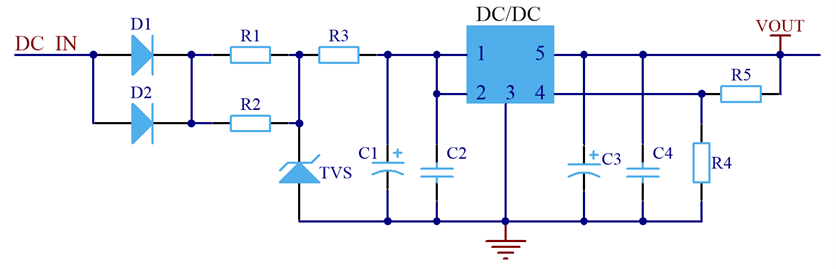

Solutions：TVS： MA24A（12V system）； MA36A（V system）
Part Number | Description |
MA24A | VRWM：24V, VBR：26.7V~29.5V，VC：38.9V@170A，PPPM：6600W，Package: DO-218AB |
MA36A | VRWM：36V，VBR：40V~44.2V， VC：58.1V@114A，PPPM：6600W，Package: DO-218AB |
