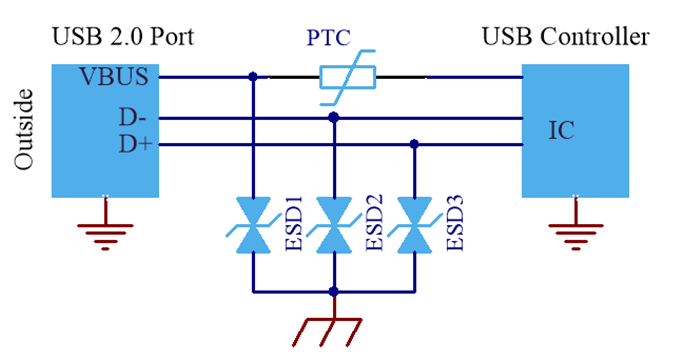

The maximum transmission rate of USB 2.0 is 480Mbps, and the signal lines that need to be avoided from being affected by ESD include D+ and D-, and the 5VDC power bus also needs to be prevented from being harmed by ESD and overcurrent.
Solutions：ESD1～ESD3：UP1P882C05P01
Part Number | VRWM | IPP | VC | C | ESD Capacity | Package |
UP1P882C05P01 | 5V | 4A | 20V@4A | 0.4pF | ±8KV ±15KV | SOD-882 |
